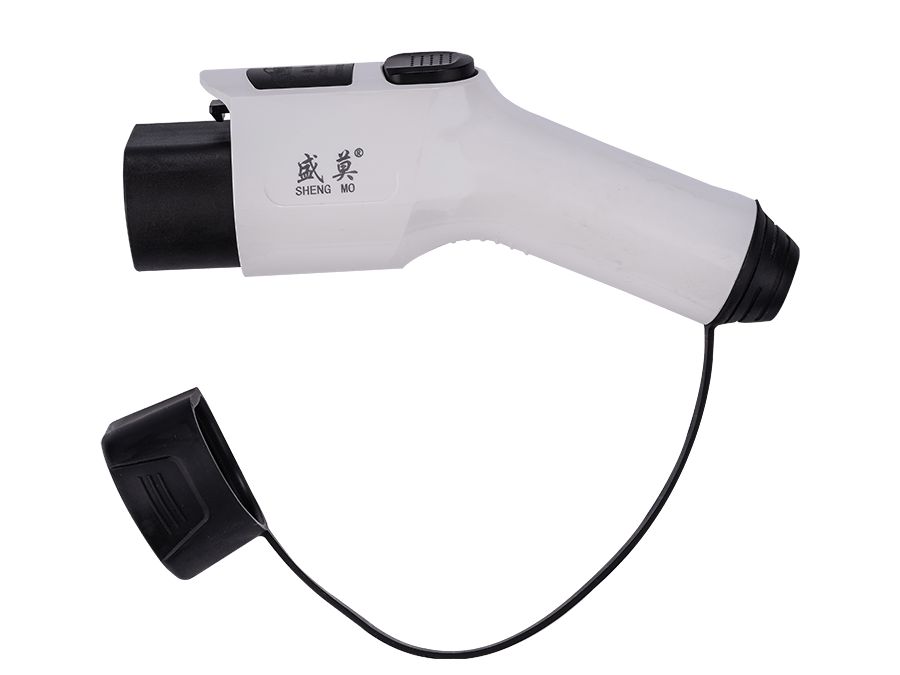

32A GB charging gun

Product Features:

  • Meet GB/T 20234.2-2015 regulations and requirements
  • Nice appearance, hand-held ergonomic design, easy plug

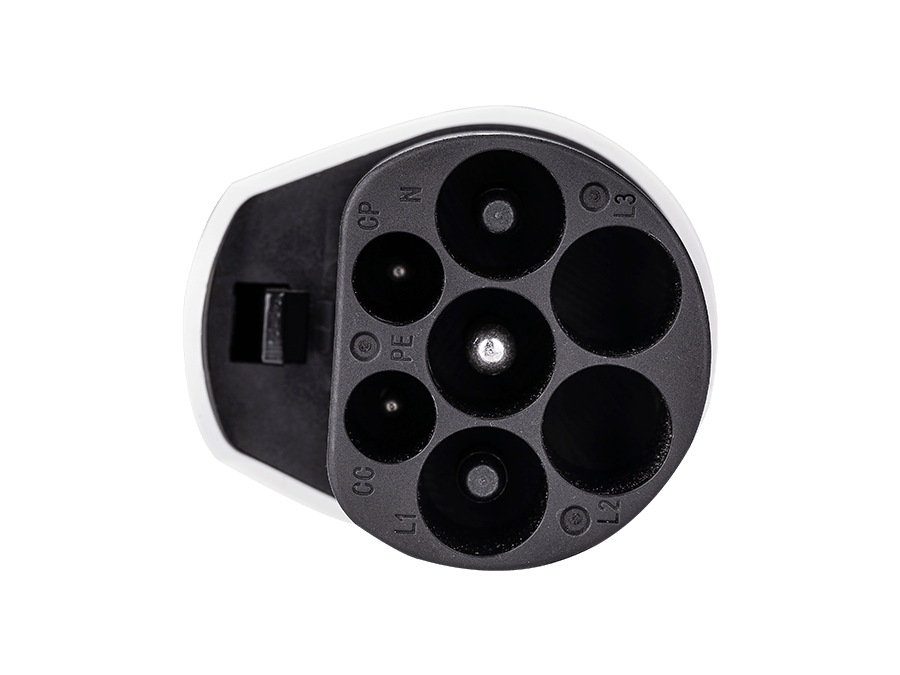

  • Safety pins insulated headdesign to prevent accidental direcrt contactwith staff
  • Excellent protection performance, protection grade IP55 (working condition)

Product Details:

Mechanical properties
Mechanical life no-load plug in/pull out>10000 times
lmpat of external force: can afford 1m drop and 2t vehicle run over pressure


Environmental performance
Operating temperature: -30℃~+50°C


Applied Materials​
Case Material: Thermoplastic, flame retardant grade UL94V-0
Pin: Copper alloy, silver + thermoplastic on the top


Electrical Performance​
Rated current : 10A、16A or 32A
Operation voltage: 250V or 440V
lnsulation resistance: >1000MΩ(DC500V)
Terminal temperature rise: <50K
Withstand Voltage : 2000V
Contact Resistance: 0.5mΩ Max

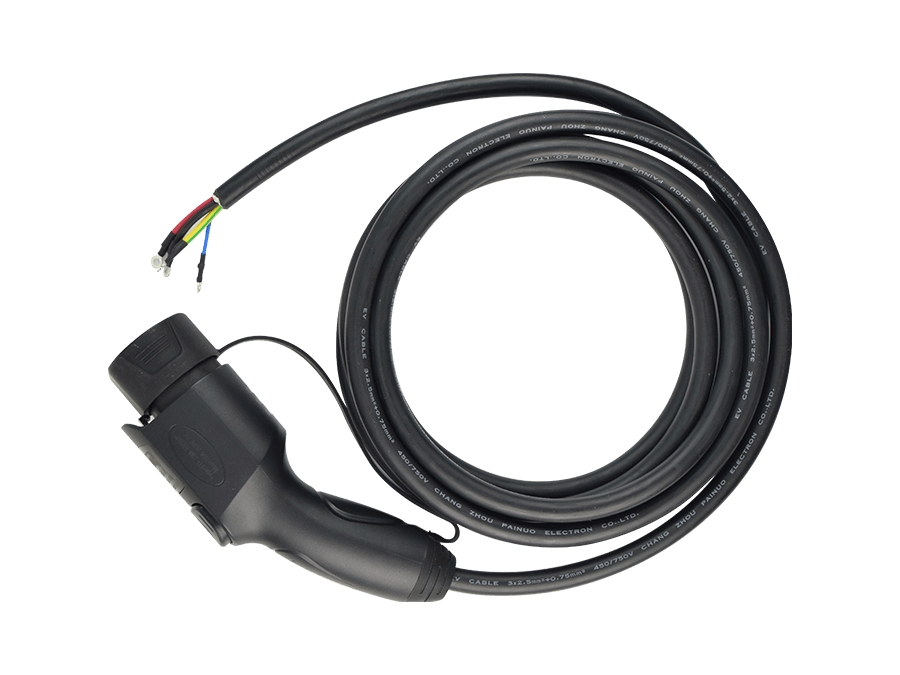

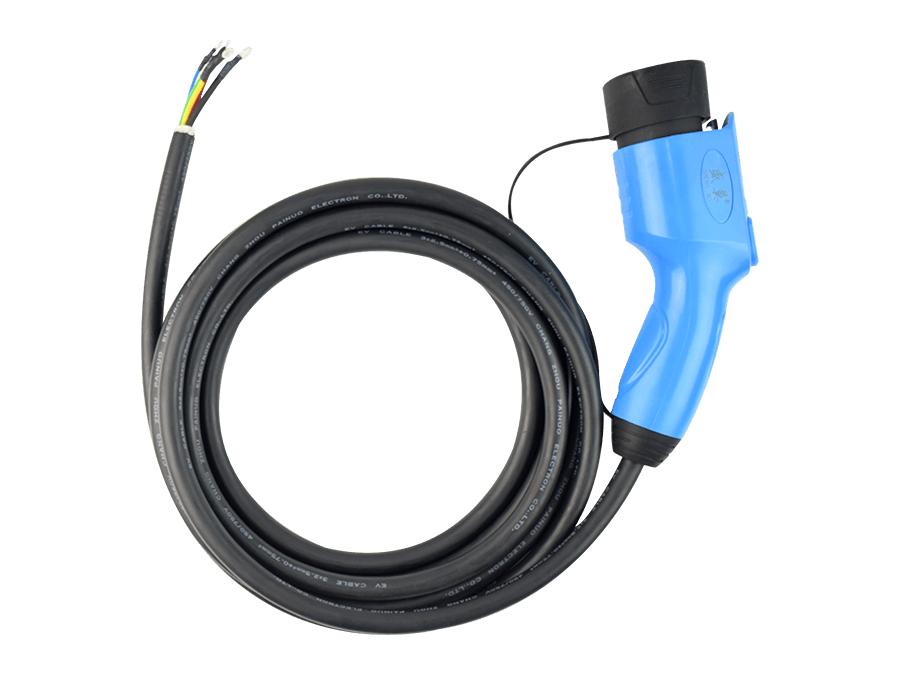

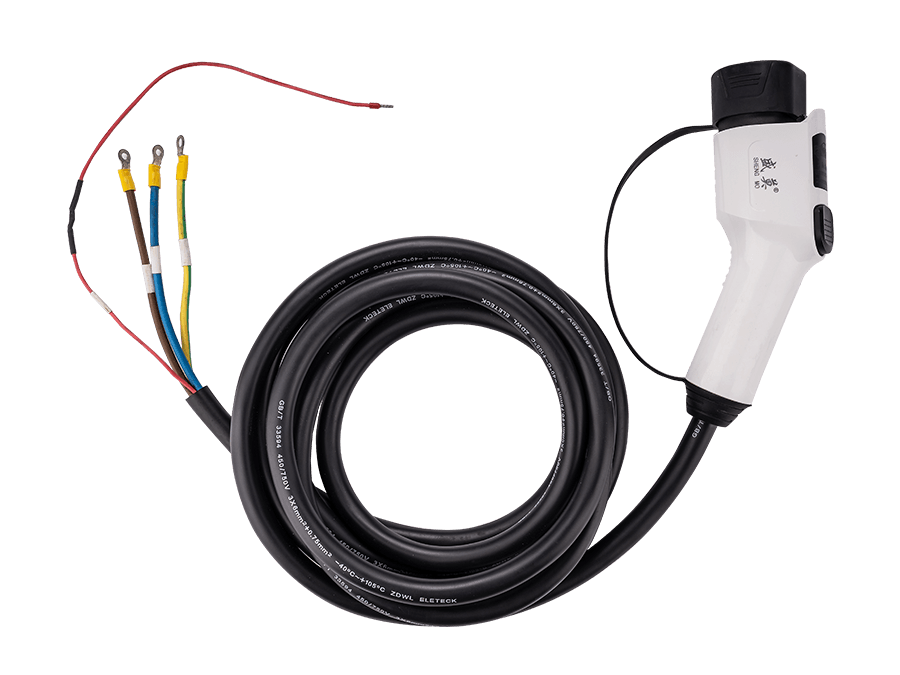

Model selection and the standard wiring

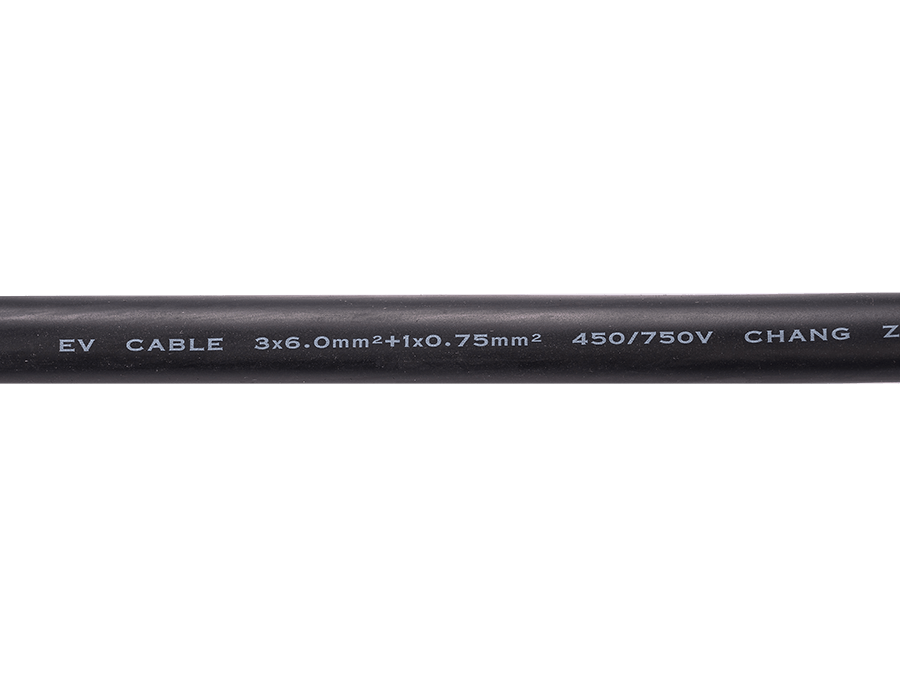

Model Rated current Cable specification
FD-SM-EV10P 10A 3×2.5mm2
FD-SM-EV16P 16A 3×2.5mm2+2×0.75mm2
FD-SM-EV32P 32A 3×6mm2+2×0.75mm2
