Mechanical properties | |
---|---|
Mechanical life | No load plugging>10000 times |
Insertion and extraction force during coupling | >45N<80N |
Environmental performance | |
---|---|
Operating ambient temperature | -30℃~+50°C |
Applied Materials | |
---|---|
Housing material | Thermoplastic, flame retardant grade UL94V-0 |
thrusting needle | Copper alloy, silver plated |
Electrical Performance | |
---|---|
Rated working current | 16A or 32A |
working voltage | 240A |
insulation resistance | >1000MΩ(DC500V) |
Terminal temperature rise | <50K |
Withstand voltage | 2000V |
Contact impedance | 0.5mΩ Max |
Product selection and standard wiring | ||
---|---|---|
Model | Rated current | Cable specification |

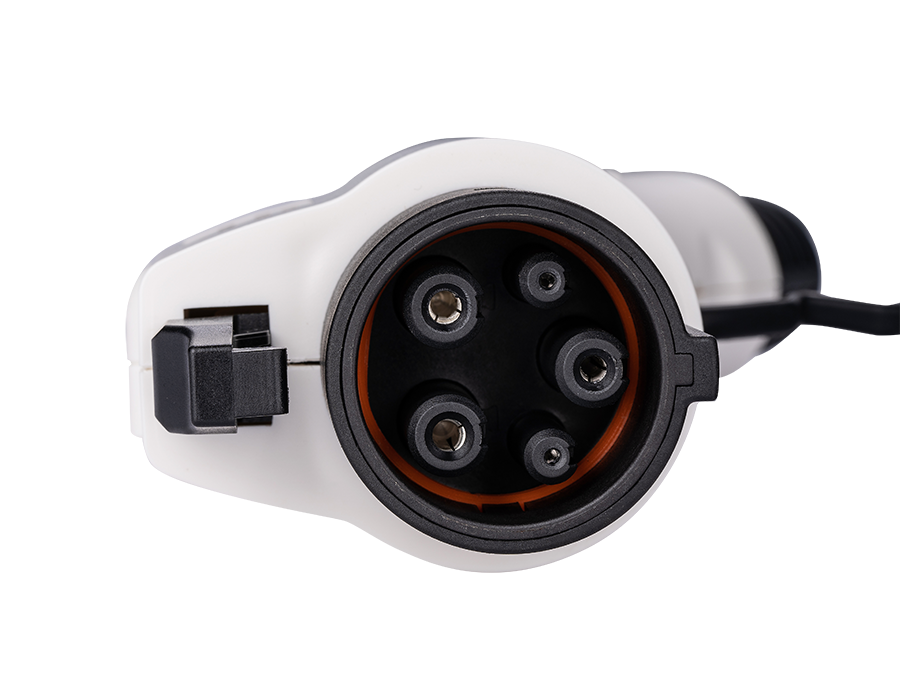

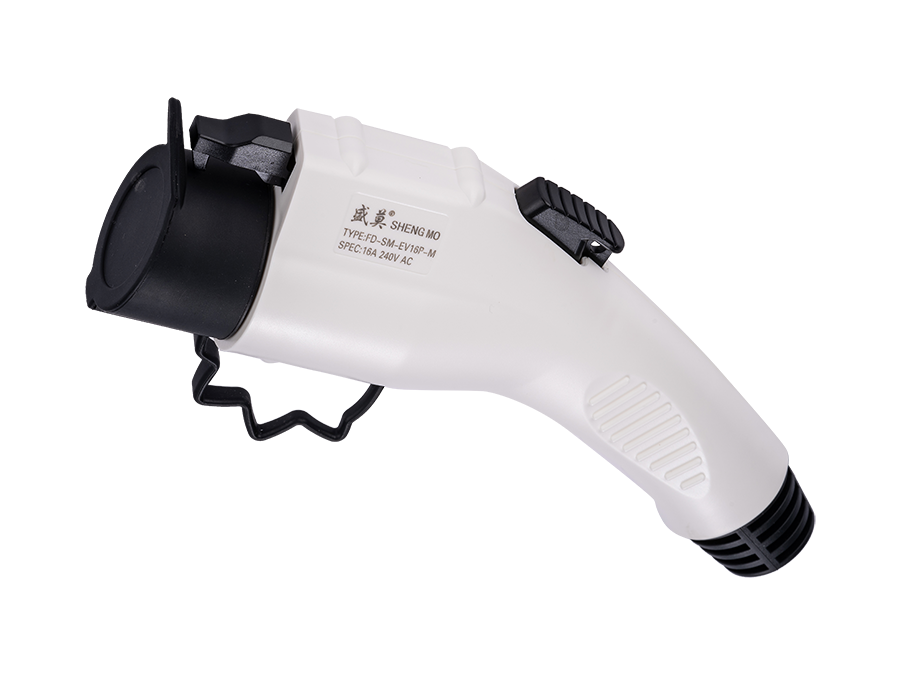

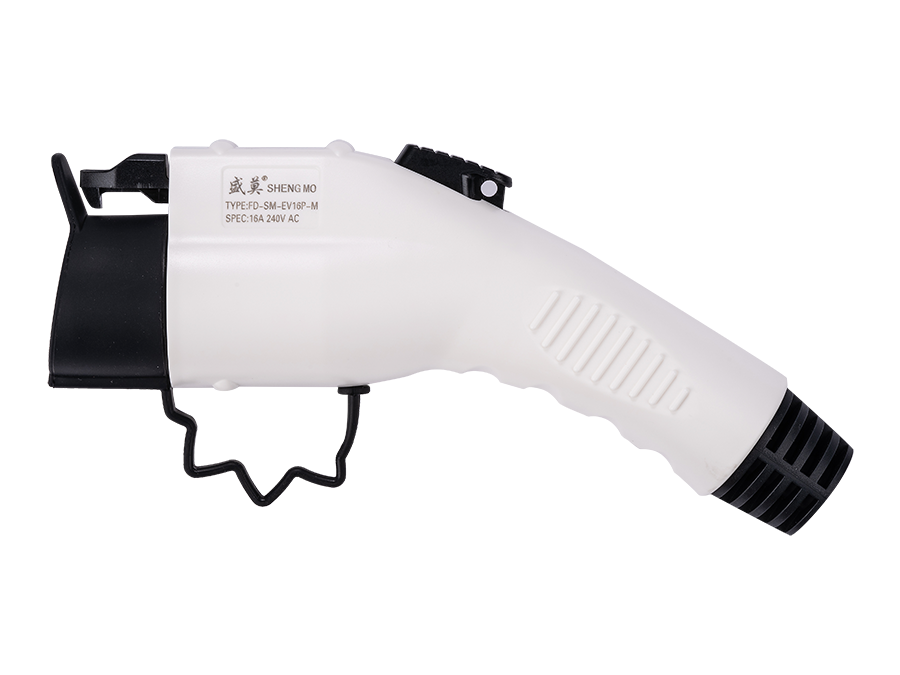

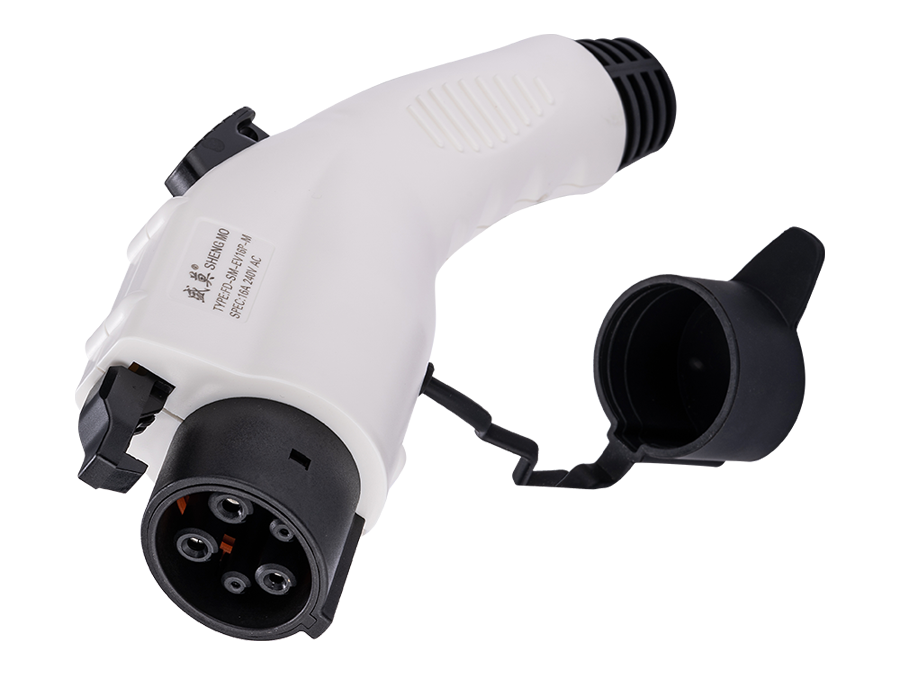

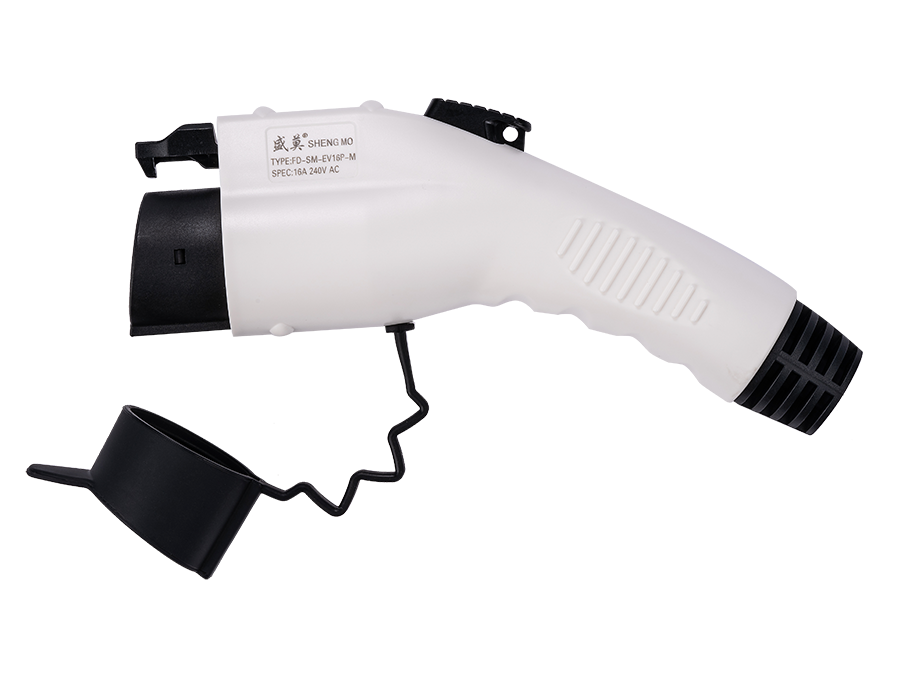

FD-SM-EV16P-M | 16A | 3×2.5mm2+2×0.5mm2/3×14AWG+1×18AWG |
FD-SM-EV32P-M | 32A | 3×6mm2+2×0.5mm2/3×10AWG+1×18AWG |
