Charging Pile Extension Cable [Double Gun]

Home > Products > Charging Pile Extension Cable [Double Gun] >

2022101100483658

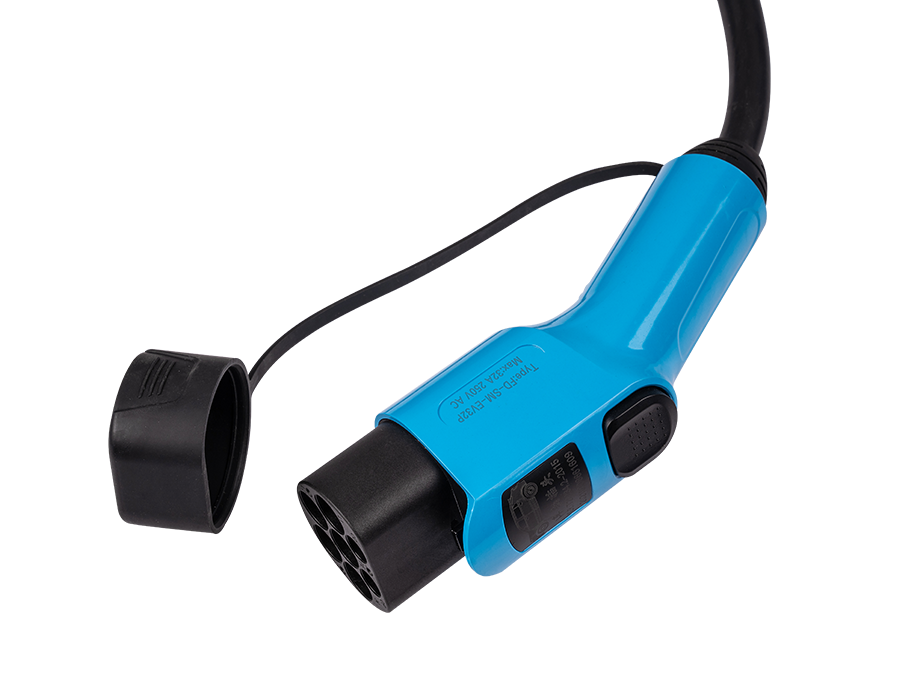

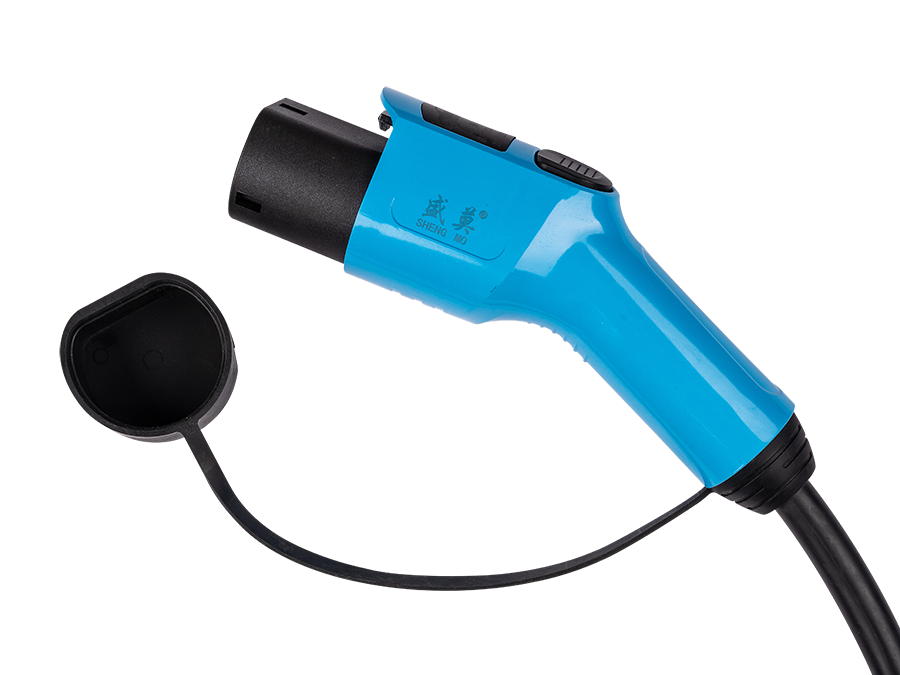

16A and 32A GB double head guns

Product Features:

  • Charging plug shall comply with GB/T 20234.2-2015
  • The product assembly complies with GB/T 20234.2-2011 Charging mode 3 Connection mode B
  • Beautiful appearance, the hand-held design conforms to the ergonomic principle, and it is convenient to plug and unplug
  • The head of the contact pin is designed with safety insulation to prevent accidental direct contact
  • Superior protection performance, with protection level reaching IP55 (working state)

Product Details:

Mechanical properties​
Mechanical life No load plugging>10000 times
Impact resistance Capable of withstanding 1m height drop and 2t vehicle rolling pressure
Environmental performance
Operating ambient temperature -30℃~+50°C
Applied Materials
Housing material Thermoplastic, flame retardant grade UL94V-0
thrusting needle Copper alloy, silver plated surface+thermoplastic top
Electrical Performance
Rated working current 16A or 32A
working voltage 220V
insulation resistance >1000MΩ(DC500V)
Terminal temperature rise <50K
Contact impedance 0.5mΩ Max
Control Box Function
Leakage protection (restart recovery)
Overvoltage and undervoltage protection (self inspection recovery)
Overload protection (self check recovery)
Lightning protection





Product selection and standard wiring

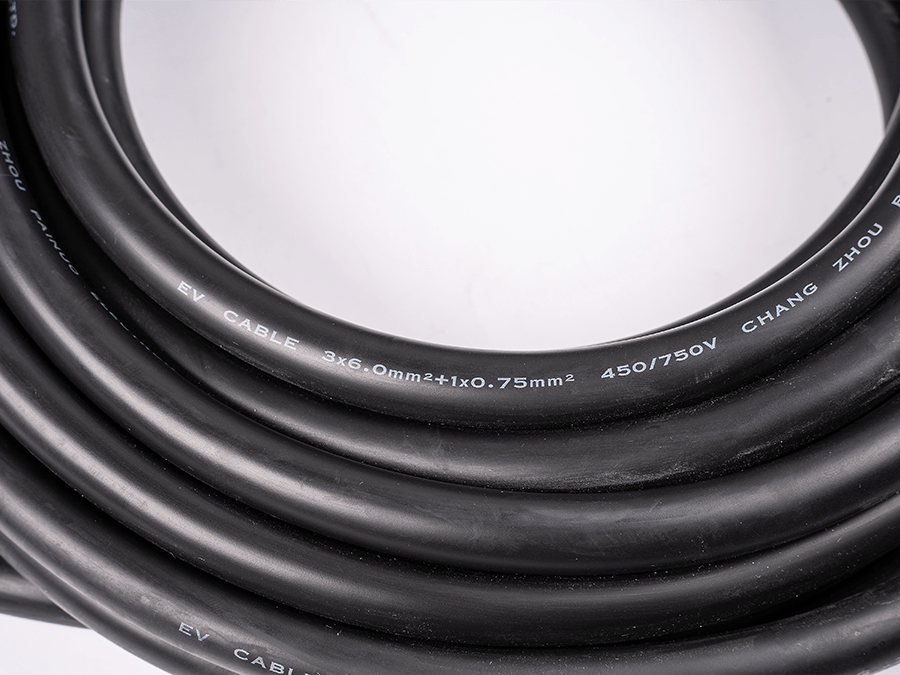

Model Rated current Cable specification
FD-SM-EV16P-S 16A 3×2.5mm2+2×0.75mm2
FD-SM-EV32P-S 32A 3×6mm2+2×0.75mm2
