American Standard 32A

Product Features:

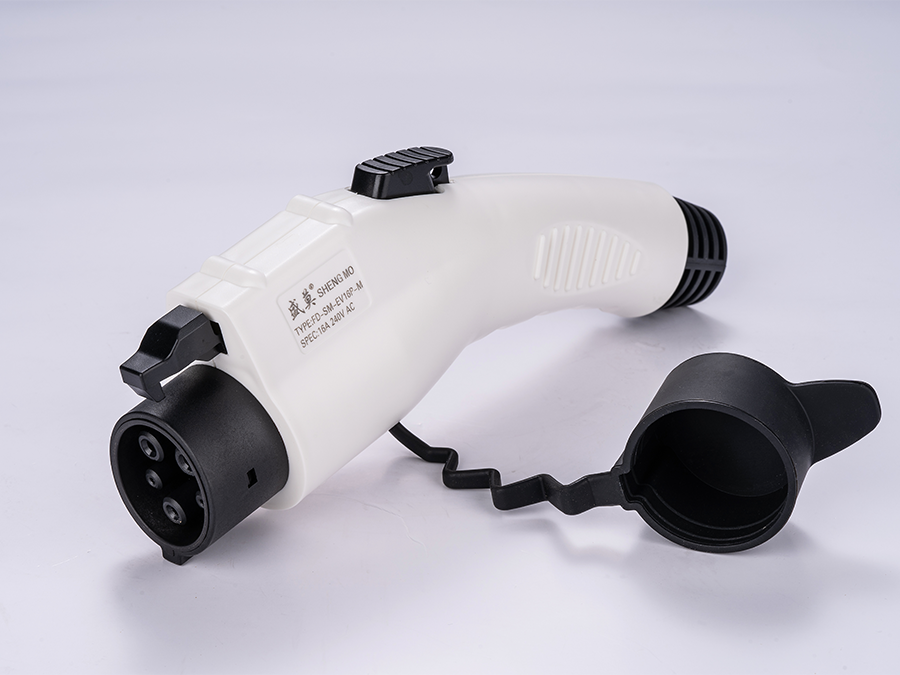

  • Charging plug complies with SEA J1772 2010 standard
  • The control box complies with SEAJ1772 2010 control principle

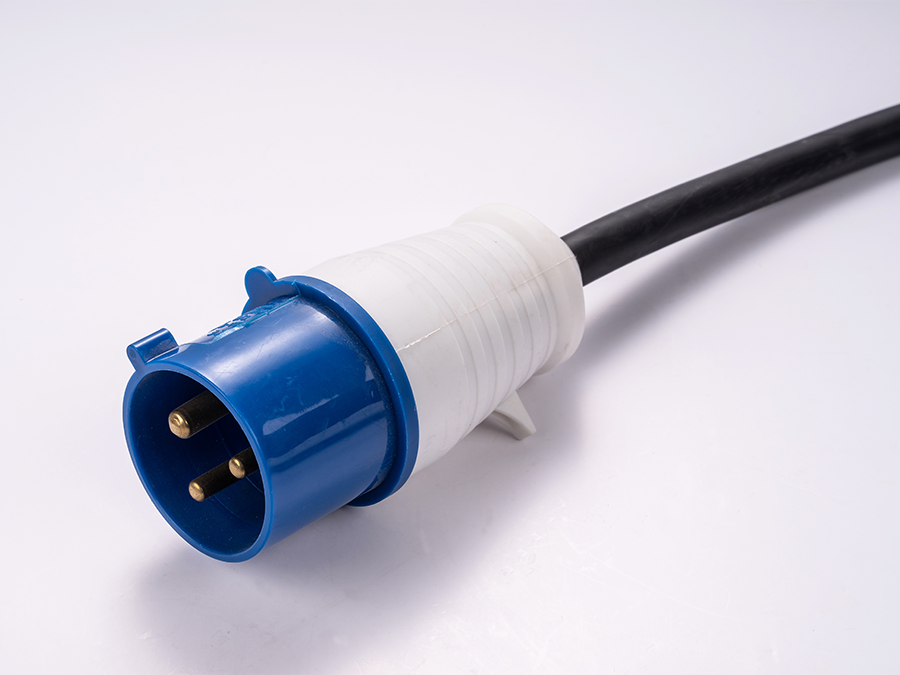

  • Power plug complies with NEMA 5-15 standard
  • Superior protection performance, with protection level reaching IP55 (working state)

Product Details:

Mechanical properties​
Mechanical life No load plugging>10000 times
Impact resistance Capable of withstanding 1m height drop and 2t vehicle rolling pressure
Environmental performance
Operating ambient temperature -30℃~+50°C
Applied Materials
Housing material Thermoplastic, flame retardant grade UL94V-0
thrusting needle Copper alloy, silver plated surface+thermoplastic top
Electrical Performance
Rated current and voltage 110V AC 10A 13A 16A 25A 32A
insulation resistance >1000MΩ(DC500V)
Terminal temperature rise <50K
Withstand voltage 2000V

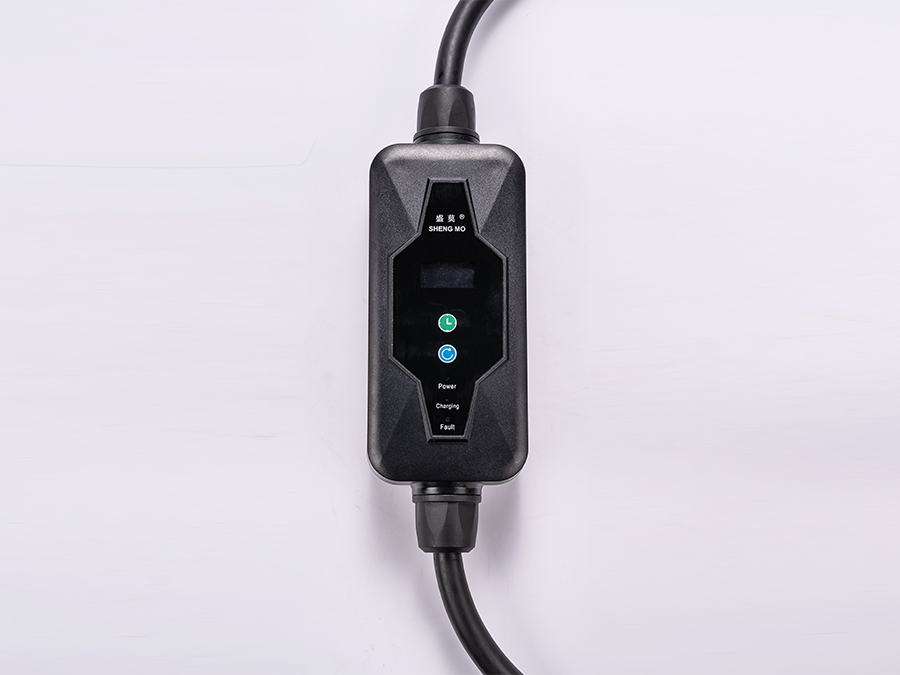

Control Box Function
Leakage protection (restart recovery)
Overvoltage and undervoltage protection (self inspection recovery)
Overload protection (self check recovery)
Lightning protection



Product selection and standard wiring
Model Rated current Cable specification
FD-SM-EV32P-M 32A 3×10AWG+1×18AWG
