Mechanical properties | |
---|---|
Mechanical life | No load plugging>10000 times |
Impact resistance | Capable of withstanding 1m height drop and 2t vehicle rolling pressure |
Environmental performance | |
Operating ambient temperature | -30℃~+50°C |
Applied Materials | |
Housing material | Thermoplastic, flame retardant grade UL94V-0 |
thrusting needle | Copper alloy, silver plated surface+thermoplastic top |
Electrical Performance | |
Rated current and voltage | 110V AC 8A 10A 13A 16A |
insulation resistance | >1000MΩ(DC500V) |
Terminal temperature rise | <50K |
Withstand voltage | 2000V |

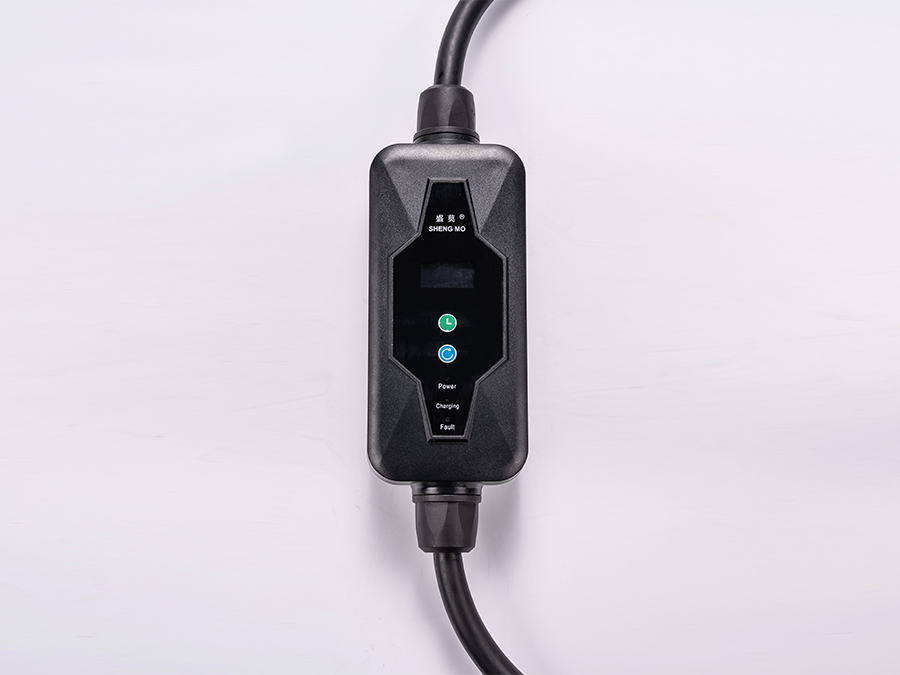

Control Box Function | |
Leakage protection (restart recovery) | |
Overvoltage and undervoltage protection (self inspection recovery) | |
Overload protection (self check recovery) | |
Lightning protection |
Product selection and standard wiring | ||
---|---|---|
Model | Rated current | Cable specification |
FD-SM-EV16P-M | 16A | 3×14AWG+1×18AWG |
