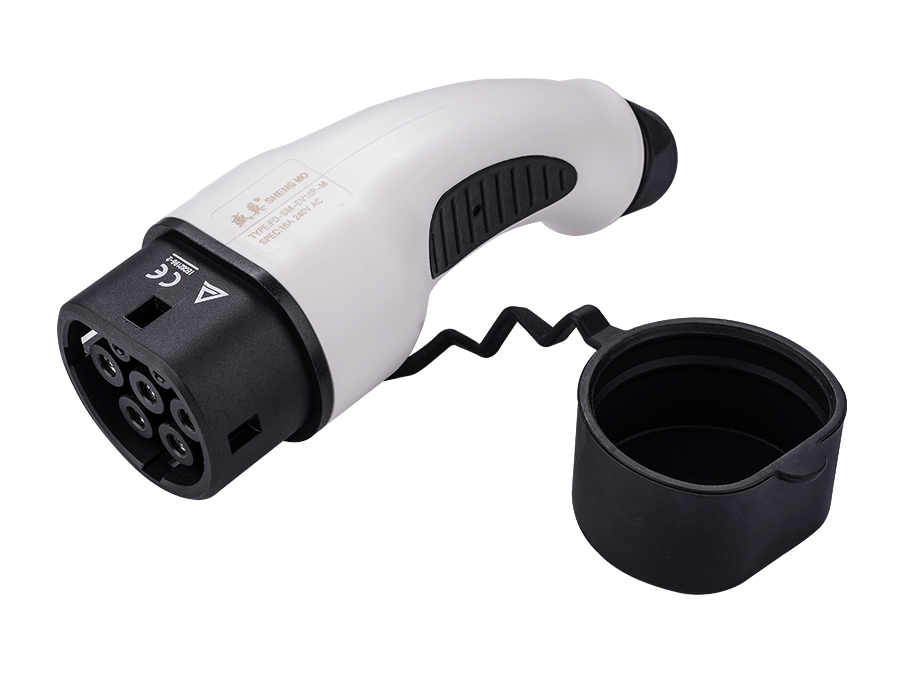

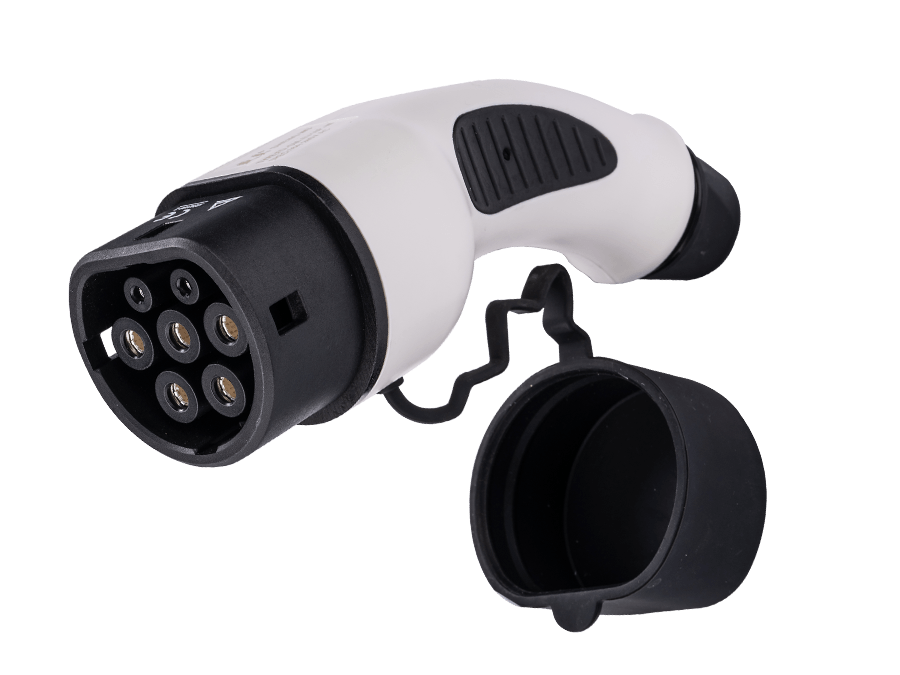

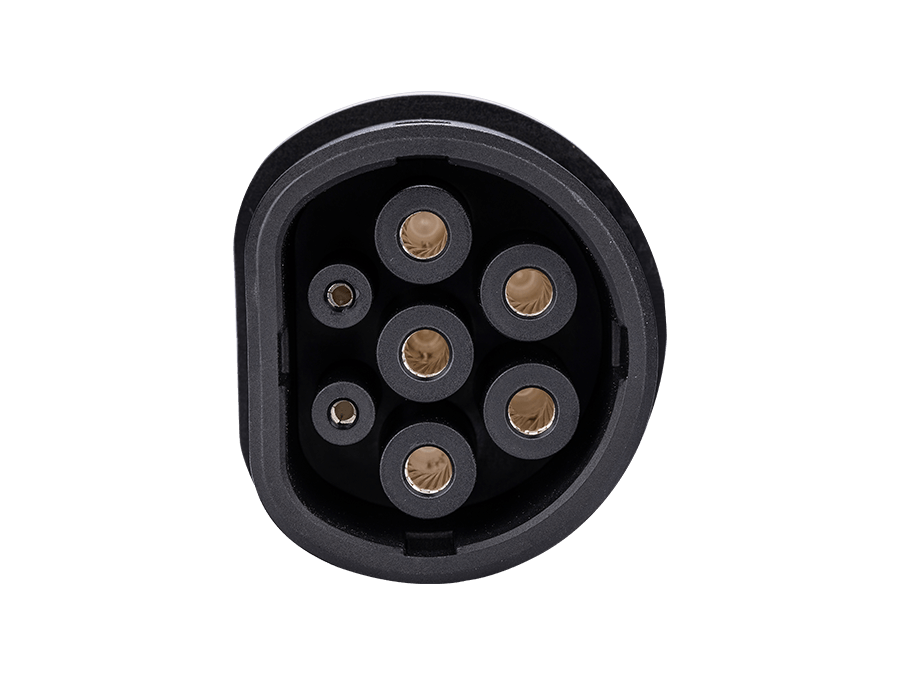

| Mechanical properties | |
|---|---|
| Mechanical life | no-load plug in/pull out>5000 times |
| Coupled insertion force: | >45N<80N |
| lmpat of external force: | can afford 1m drop and 2t vehicle run over pressure |
| Environmental performance | |
|---|---|
| Operating temperature: | -30℃~+50°C |
| Applied Materials | |
|---|---|
| Case Material: | Thermoplastic, flame retardant grade UL94V-0 |
| Contact bush: | Copper alloy,silver plating |
| Electrical Performance | |
|---|---|
| Rated current : | 16A or 32A |
| Operation voltage: | 250V or 415V |
| lnsulation resistance: | ＞1000MΩ(DC500V) |
| Terminal temperature rise: | ＜50K |
| Withstand Voltage : | 2000V |
| Contact Resistance: | 0.5mΩ Max |
| Model selection and the standard wiring | ||
|---|---|---|
| Model | Rated current | Cable specification |
| FD-SM-EV16P-O | 16A single-phase | 3×2.5mm2+2×0.5mm2 |
| 16A three-phase | 5×2.5mm2+2×0.5mm2 | |
| FD-SM-EV32P-O | 32A single-phase | 3×6mm2+2×0.5mm2 |
| 32A three-phase | 5×6mm2+2×0.5mm2 | |
